Quattro

Wearable inference pipeline that approaches Shake or Tremor Sensing using detection of motion samples on Apple Devices - Watch and iPhone. Ingredients include capure of Inertial Measurement Unit (IMU) samples for accleration, rotattion and gravity using CoreMotion capture. Samples are passed both to on-board CoreML inference lightweight 1D CN plus to a backend inference pipeline - a Python substrate for orchestration and model training.

PlatformiOS · watchOS · Python backend

LanguageSwift · Objective-C · Python

InferenceCoreML (on-device) · PyTorch (backend)

Classifier1D CNN · 161K params · ~630 KB

Input9-channel IMU · 128 samples · 1.28 s @ 100 Hz

SourceClosed Source, Unpublished Work

Frontend — Apple Devices

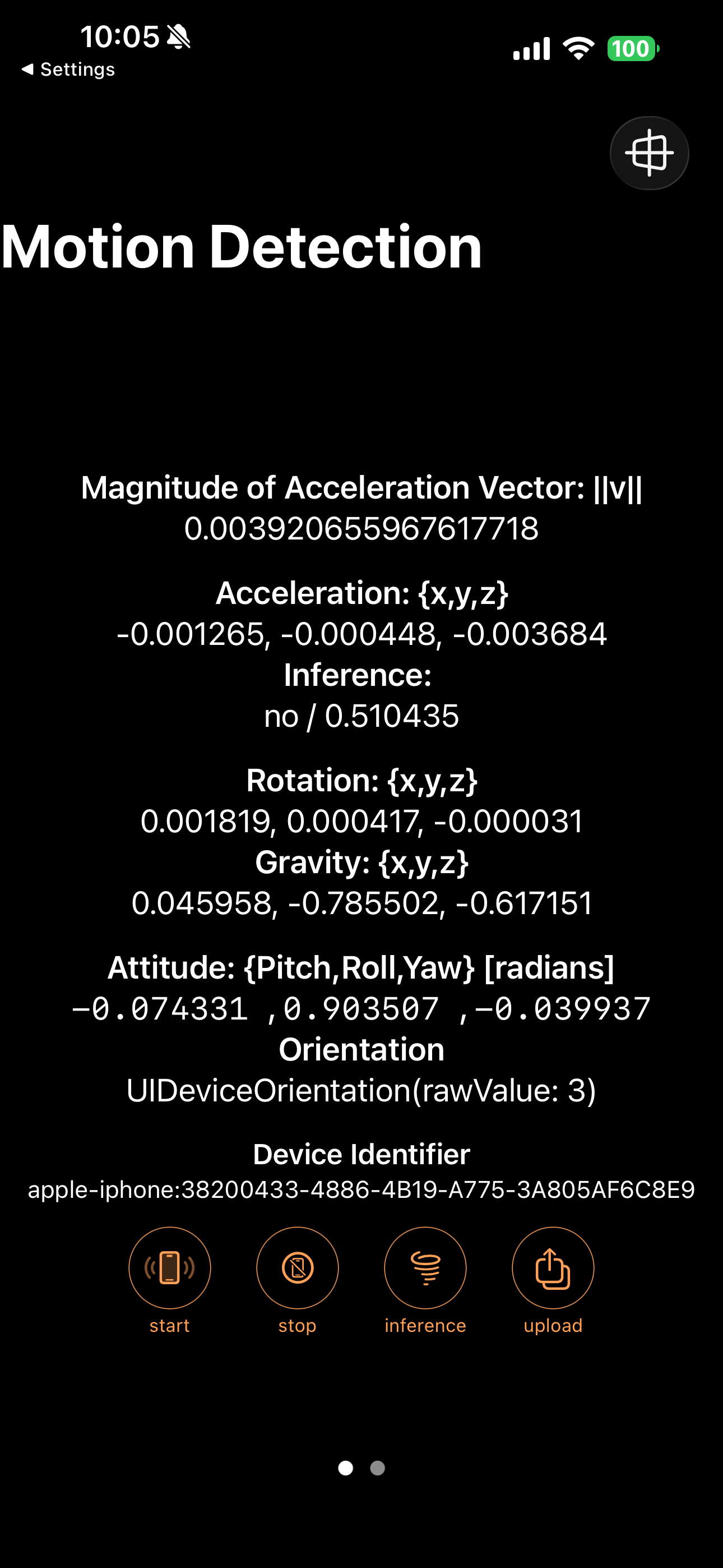

iPhone capture

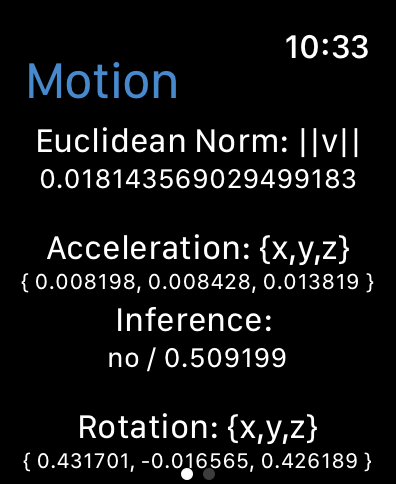

Apple Watch

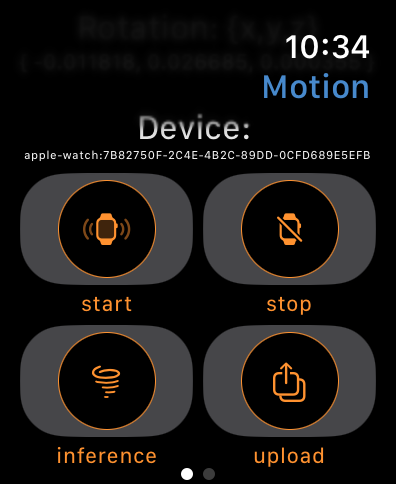

Watch Controls

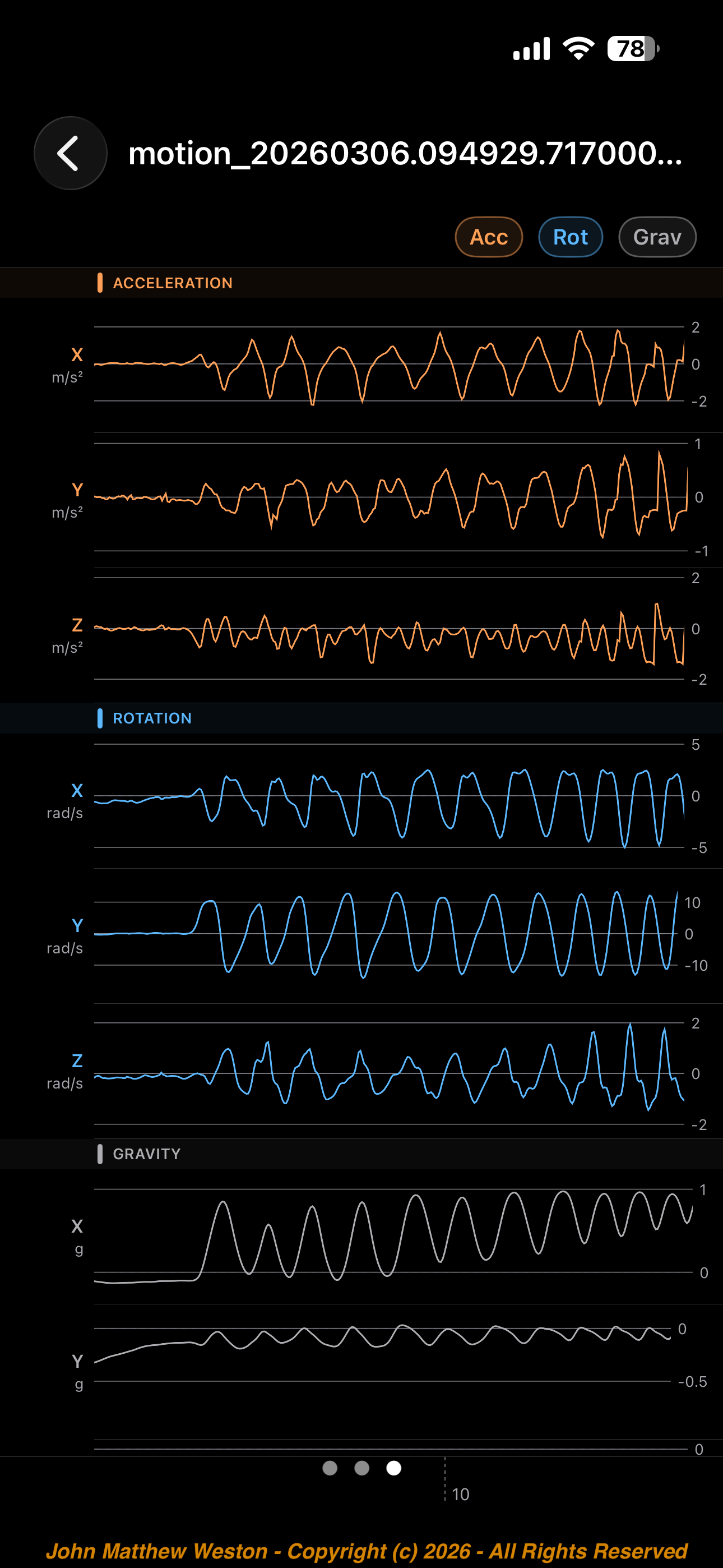

Motion waveform

Backend - Data Pipeline

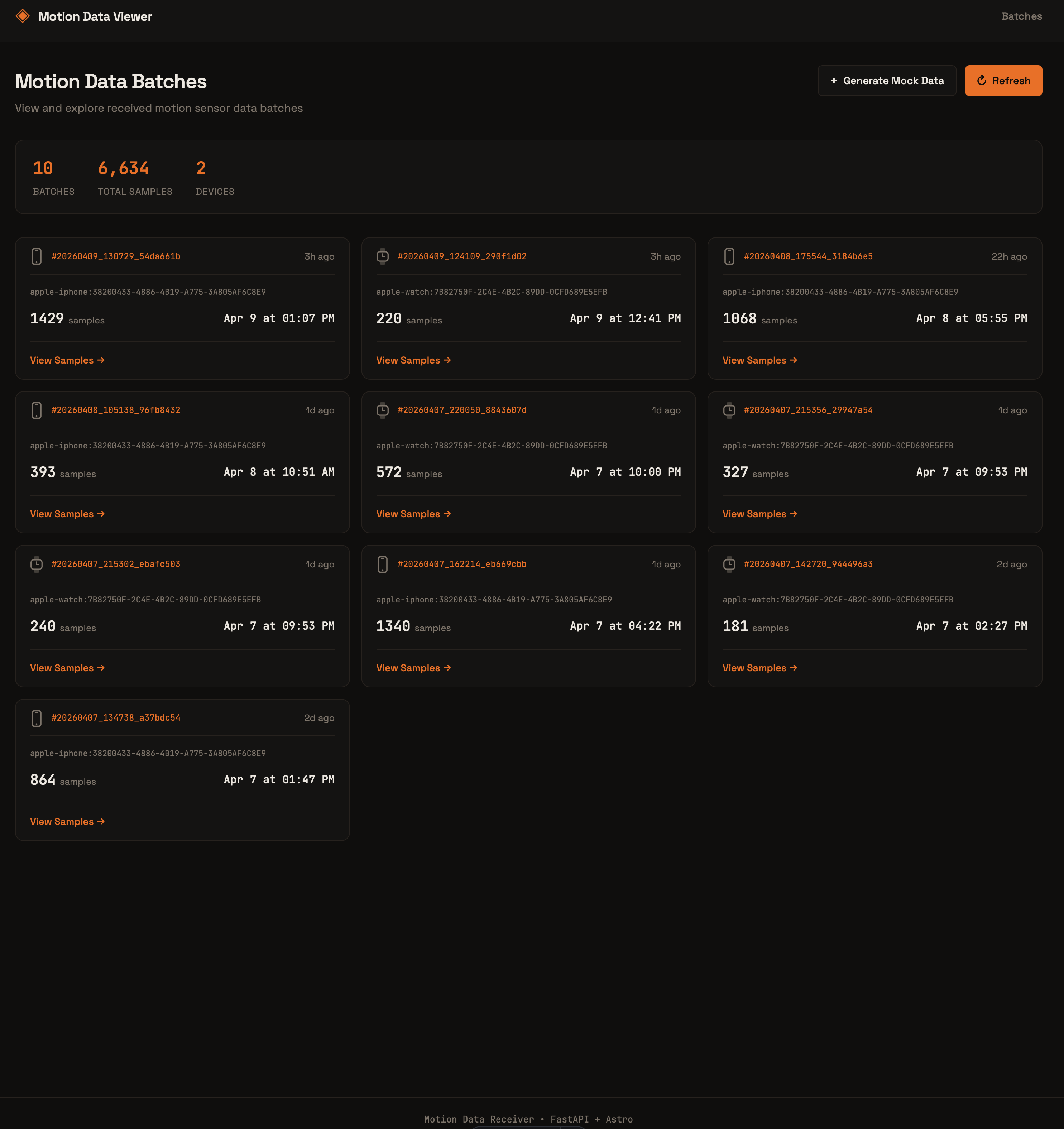

Landing

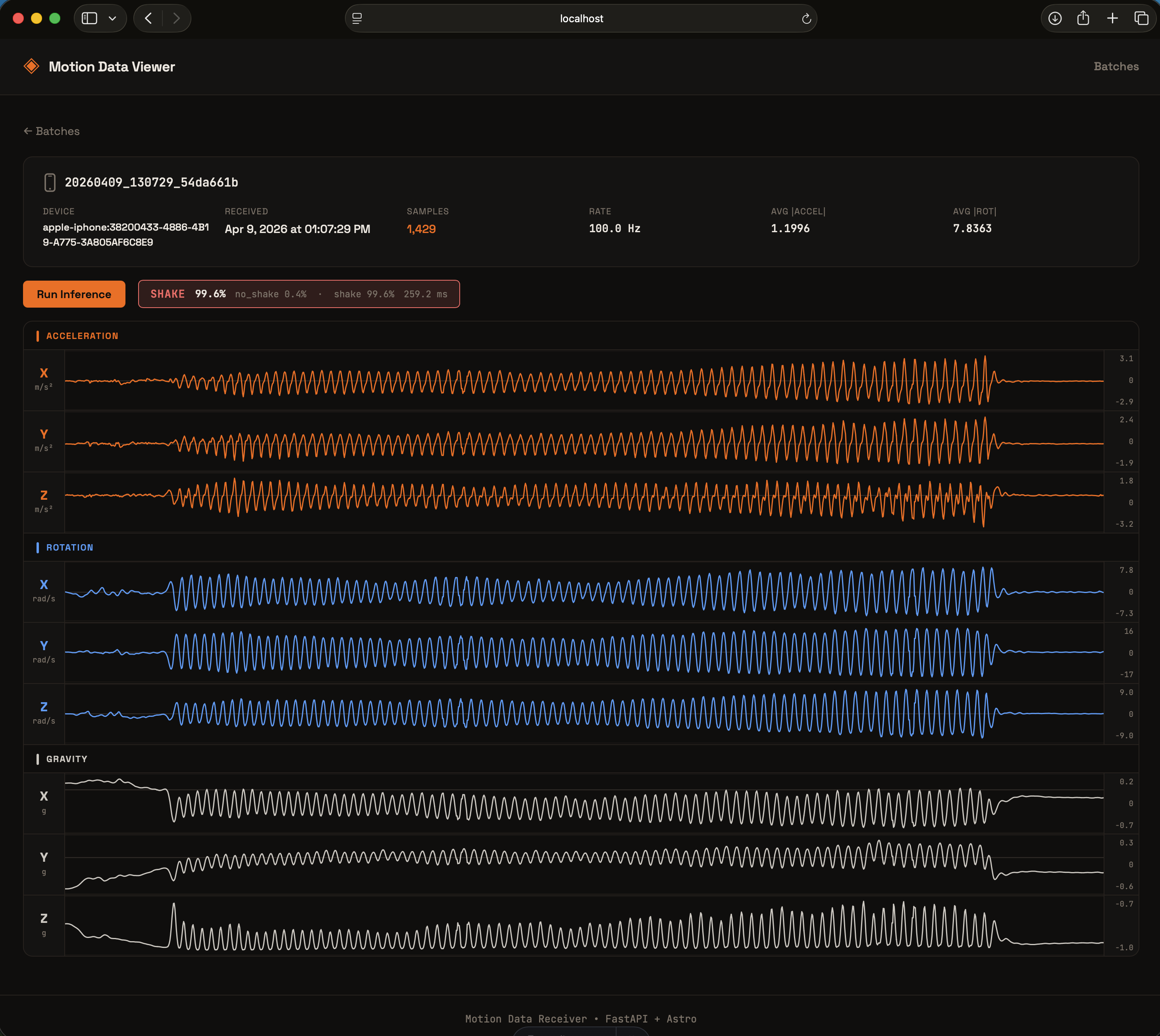

Shake inference plot

Abstract

Quattro is a system for detecting shake and tremor from Apple Watch and iPhone sensor data. It captures motion readings from the device's accelerometer and gyroscope, sends them to a backend for analysis, and returns a single result: shake detected — yes or no — with a confidence score (0.0 to 1.0).

The clinical motivation is detecting motion patterns associated with neurological conditions such as Parkinson's Disease and Essential Tremors. An Apple Watch worn on the wrist is a natural source for continuous, unobtrusive monitoring.

The name quattro is a nod to the Latin quatio (to shake), hinting at the four dimensions of interest: x, y, z, and time.

Components

The iOS and watchOS applications use Apple's CoreMotion framework to capture motion samples — acceleration, rotation, and gravity vectors — at approximately 100 Hz. Each sample is packaged as a MotionDataSample with a timestamp and device identifier, batched for backend transmission.

On-device inference is also supported: a CoreML model package runs locally on the phone or watch for real-time classification without a network round trip. The CoreML model is exported from the same PyTorch model used in the backend, ensuring weight parity.

Waveform display was adapted from EKG signal work in the Signals project — generic enough to support the 9 IMU channels with minor adjustments. Two display modes are available: bundle-internal raw sample sets, and loaded files from the export/upload feature.

A Python service built around a REST receiver, data storage, workflow orchestration, inference, and CoreML export.

Component	Role
Receiver	FastAPI REST endpoint accepting motion data batches from devices
Data Storage	Samples persisted as JSON for downstream processing
Orchestrator	Workflow coordination and data processing — Prefect and Dagster
Inference	1D CNN classifier (PyTorch) — shake vs. no-shake
Converter	Exports trained model to CoreML for on-device deployment

Data Flows

Reference below for an illustration for the key steps in the capture and inference pipeline data flow.

Connection	Carries	Transport
Core Motion → Motion Detector	Inertial Measurement Unit (IMU) data sample: [acceleration,rotation,gravity]	call
Motion Detector → Data Buffer	IMU data sample (N=1)	memory
Motion Detector → Classifier	IMU data samples (N=128)	memory
Classifier → Provider	shake prediction with confidence score	call
Provider → Receiver	batch of IMU data samples	JSON REST API [FastAPI]
Receiver → Data Storage	IMU data sample batch	filesystem
Orchestrator → Inference	IMU data sample set, batch selection	Data Storage
Inference → Orchestrator	shake prediction with confidence score	call
Orchestrator → User Interface	IMU data sample batch, shake prediction with confidence score	user data navigation

The Classifier

A lightweight 1D convolutional neural network ShakeTremorClassifier designed for fast inference on edge devices. First deployment targets Apple Watch and Apple iPhone; architecture is also suitable for NVIDIA Jetson Orin Nano.

Property	Value
Parameters	~161K
Model size	~630 KB
Inference time	1–15 ms (CPU)
Input window	1.28 seconds at 100 Hz (128 samples)
Input channels	9 — acceleration x/y/z · rotation x/y/z · gravity x/y/z
Output	SHAKE yes/no + confidence score 0.0–1.0

Three convolutional blocks with decreasing kernel sizes (7 → 5 → 3) capture motion patterns at different time scales — from broad shake gestures down to fine tremor oscillations. A classification head outputs probabilities for shake vs. no-shake.

Preprocessing Pipeline

Raw sensor data passes through three stages before the classifier:

Stage	Detail
1. Normalization	z-score scaling per sensor type — acceleration, rotation, and gravity each have different ranges
2. Fixed-length formatting	Sequences padded or truncated to exactly 128 timesteps
3. Channel reordering	Data reshaped to `(N, 9, 128)` for the convolutional layers

Feature Primitives

While the classifier operates on raw IMU data without hand-crafted features, classical feature extraction remains useful upstream as a signal quality gate. The Euclidean norm of the acceleration vector provides a low-cost switch to wake or sleep the inference pipeline:

|a| = √(ax² + ay² + az²)

Near zero → static / quiet state → no need to run inference
Non-zero  → dynamic state → candidate for classification

Training Data

Initial weights were determined using the Parkinson's Disease Tremor Dataset — pre-windowed X.npy (N, 128, 3) + Y.npy labels, binarized with Y > 0 (tremor vs. none). The IMU-Wild sub-dataset adds gyroscope (6 channels).

Gap: the dataset is accelerometer-only (no gravity channel). Zero-fill channels 3–8 or retrain the stub with input_channels=3. Fix: X.transpose(0, 2, 1) → (N, 3, 128), then pad to (N, 9, 128).

Current Status

Active workbench project. Confidence scores are flowing end-to-end — from sensor capture on device, through the backend inference pipeline, back to the app UI.

Current focus areas:

Area	Notes
Model architecture evaluation	Comparing approaches from recent HAR literature
Training data pipeline	Expanding dataset coverage and augmentation
Preprocessing refinement	Feature extraction and normalization tuning
Attention mechanisms	Frequency-domain features under exploration as enhancements

References

Nature: npj Parkinson's Disease — entry point to recent clinical algorithms
Ignatov (2018). "Real-time Human Activity Recognition from Accelerometer Data using Convolutional Neural Networks" — primary influence on 1D CNN operating on raw accelerometer time series
Ordóñez & Roggen (2016). "Deep Convolutional and LSTM Recurrent Neural Networks for Multimodal Wearable Activity Recognition" — source of the 9-channel sensor fusion approach (accelerometer + gyroscope + gravity); pure CNN used here rather than DeepConvLSTM
Fawaz et al. (2020). "InceptionTime: Finding AlexNet for Time Series Classification" — inspiration for hierarchical decreasing kernel sizes (7 → 5 → 3) for multi-scale temporal pattern capture
Bazgir et al. (2018). "A Neural Network System for Detection and Assessment of Tremor" — domain validation that 1D CNNs are effective for pathological tremor frequency detection
Wen S, Chen Y, Ma Y, et al. (2023). "Time series adaptation network for sensor-based cross domain human activity recognition." IJCNN 2023.
Wen S, Chen Y, Guo S, et al. (2023). "Discriminative domain adaptation network for fine-grained disease severity classification." IJCNN 2023.
